Multi PHS

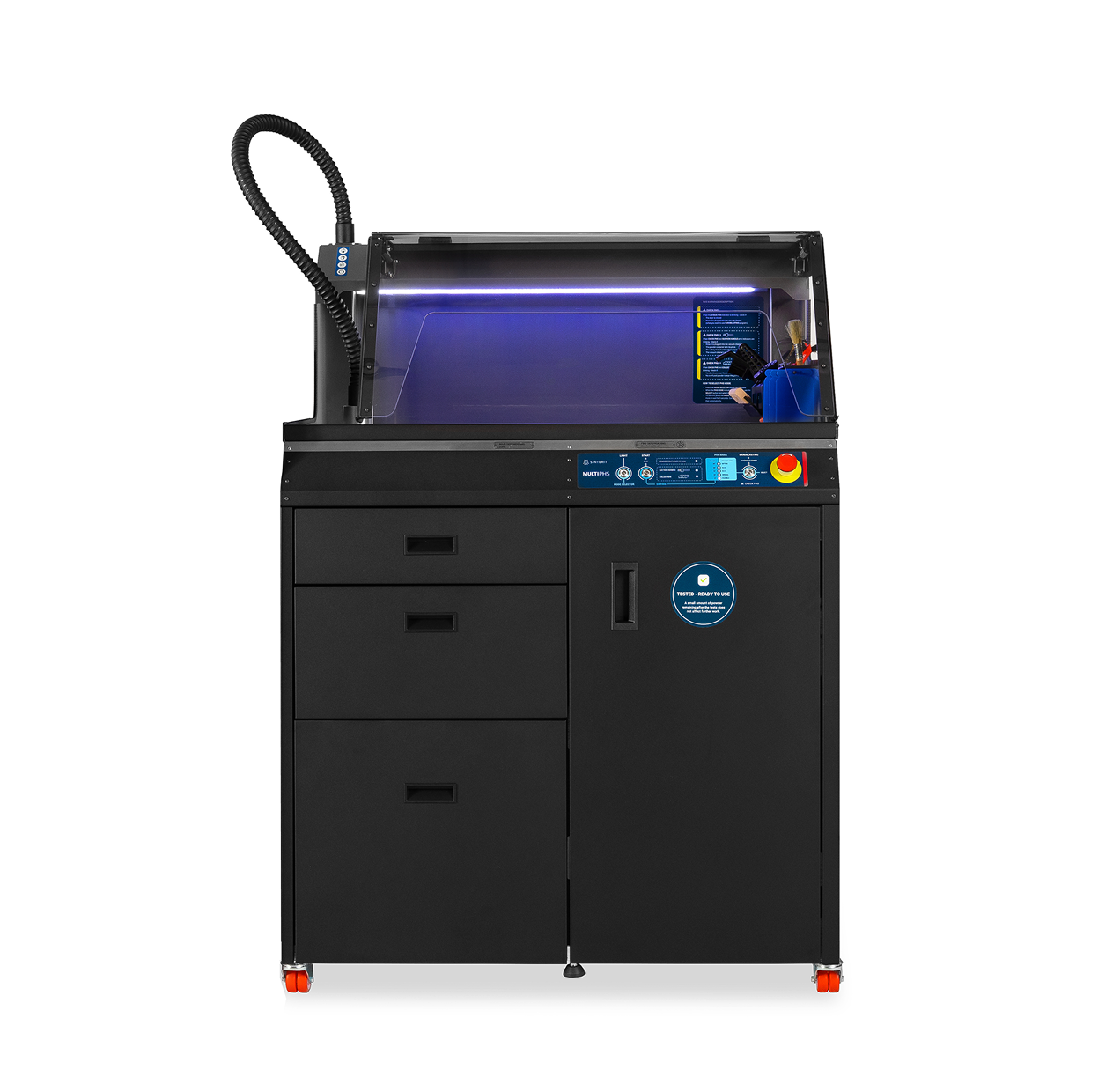

Sinterit Multi PHS 110V (Powder Handling Station v3) + Accessories

Streamline Your SLS Workflow with Precision and Efficiency

The Sinterit Multi PHS 110V is an advanced Powder Handling Station designed to optimize every stage of your Selective Laser Sintering (SLS) 3D printing process. From depowdering to sieving and powder recovery, this all-in-one solution ensures a clean, efficient, and user-friendly workflow, making it an indispensable addition to any professional additive manufacturing setup.

Key Features:

• Integrated Workflow Management: Consolidate all post-processing steps—depowdering, sieving, and powder recovery—into a single, ergonomic workstation.
• Advanced Sieving System: Equipped with four dedicated sieving programs tailored for different materials (PA12, PA11, TPU, and others), plus a solo-sifting mode for specialized tasks.
• High Powder Recovery Efficiency: Achieve up to 95% recovery of unsintered powder, reducing material waste and operational costs.
• Adjustable Workspace: Features a customizable grid to accommodate various print sizes, from compact to industrial-scale outputs.
• User-Friendly Interface: An intuitive control panel allows for easy operation and monitoring of connected devices like vacuum cleaners and sandblasters.
• Enhanced Safety Measures: Includes a plexiglass cover to minimize dust dispersion.

Technical Specifications:

• Dimensions: 1000 x 700 x 1700 mm (39.4 x 27.6 x 66.9 inches)
• Weight: 157 kg (346.2 lbs)
• Power Supply: 110V AC, 50/60 Hz
• Power Consumption: 80W
• Powder Capacity: 20 liters (95.3 [gal])

Included Accessories:

• Magnetic mobile tool holder

• 3 nozzles

• Anti-noise headphones

• Powder wiper

• PVC brush

• Special brush for deep-material change cleaning

• Cotton pads

• Tools

By integrating the Sinterit Multi PHS 110V into your SLS 3D printing operations, you enhance efficiency, ensure safety, and achieve superior print quality. Its thoughtful design and comprehensive features make it an essential tool for professionals seeking to optimize their additive manufacturing processes.

For more information download:

Technical specification
